Product General Information

Description of products	Face Mask
Products Colour	White
Product style/order No	KK-9501
Product Type	Non-reusable, folded, particle filtering half mask
Standard	EN 149:2001+A1:2009
Classification	FFP2 NR

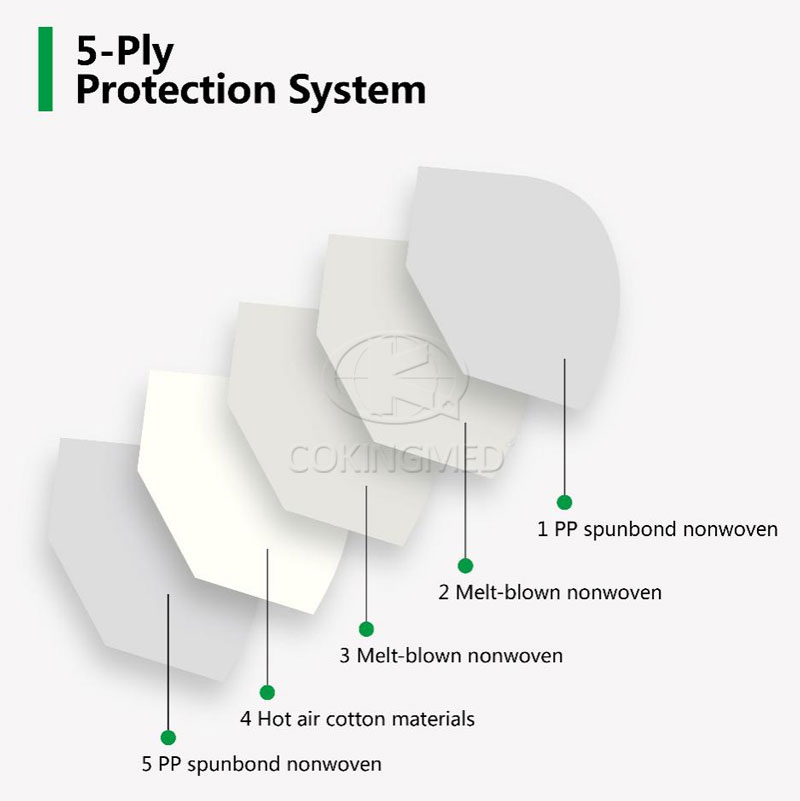

Parts List

Parts	Components
Filtering facepieces	Outer Layer 1:100% Polypropylene non woven fabric, 50gsm white
	Middle Layer 2:100% Polypropylene melt-blown fabric, 25gsm white
	Middle Layer 3:100% Polypropylene metl-blown fabric, 25gsm white
	Middle Layer 4:100% Polypropylene hot air cotton, 50gsm white
	Inner Layer 5:100% Polypropylene non woven fabric, 30gsm white
Nose bar	52% Iron 48% Polypropylene plastic, white
Ear loop	70% nylon 30% spandex white

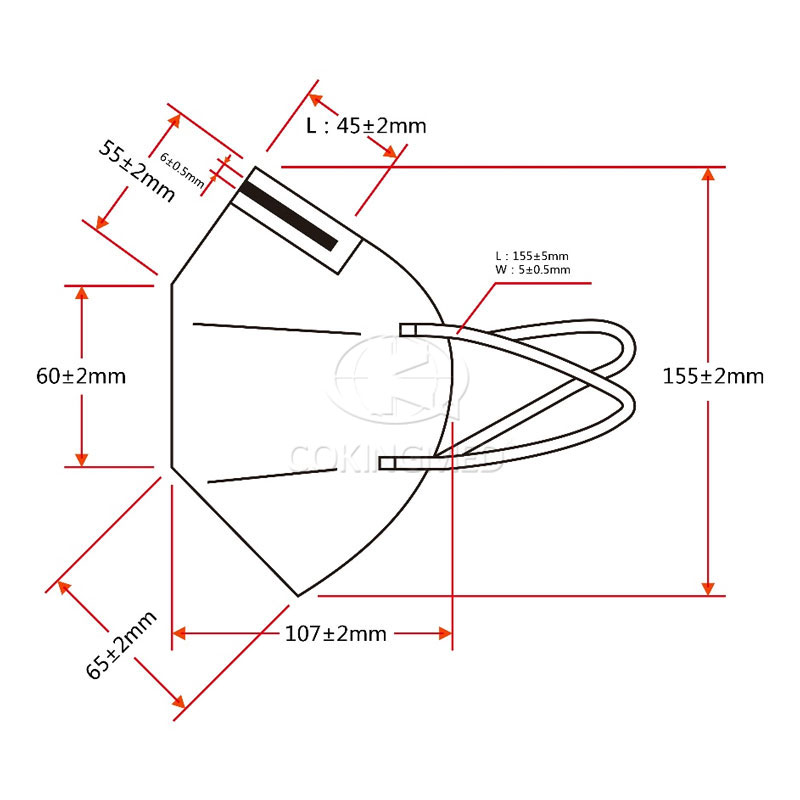

Product(s) Dimension

Manufacturer’s Instructions and Information

Instruction for use

Face Mask

Please read this User Information Sheet carefully before using this product. This product complies with the requirements of EU Regulation (EU) 2016/425 for Personal Protective Equipment and meets the requirements of European standard EN 149:2001+A1:2009.

Check prior to use

The respirator must be selected properly for intended application. An individual risk assessment must be evaluated. Check the respirator that it is undamaged with no visible defects. Check that the expiry date has not been reached (see the packaging). Check the protection class (FFP1 NR/ FFP2 NR/ FFP3 NR) is appropriate for the product used and its concentration. Do not use the mask if a defect is present or the expiry date has been exceeded.

Intend use of this PPE:

These devices are designed to protect against both solid and liquid aerosols. And be used in industries such as Textile, abattoirs, metallurgy, construction, iron and steel industries, etc. To Protects against dusts, mists and fumes containing calcium carbonate, clay, kaolin, cellulose, cotton, flour, ferrous metals, vegetal and mineral oils, metal-working fluids.

This product is designed to protective against the risks:

Risk

Standard Clause

Assessment method

Penetration of particle

EN 149:2001+A1:2009,

clause 7.9.1 and 7.9.2

Total inward leakage test, Penetration of filter material

Application/ Limitations

This respirator is suitable for use in protection against the non-toxic solid and liquid aerosols. Do not use out of the scope of use defined in the warnings. Failure to properly use this product may result in serious health damage or death.

FFP2 NR: Filter Efficiency 94%; Allocated Protection Factor (FPA) is 10, Examples of applications are Sanding of soft wood, composite materials, rust, putty, plaster, plastics / cutting, deburring, grinding, drilling of metal.

Explanation of marking

Marking	Description on label	Explanation
		Trademark
	KK-9501	Type-identifying marking, style No
	EN 149:2001+A1:2009	Number of European standards
	FFP2 NR	Classification Filter Efficiency 94%, non reusable
	CE 0598	CE marking ¬ified body number

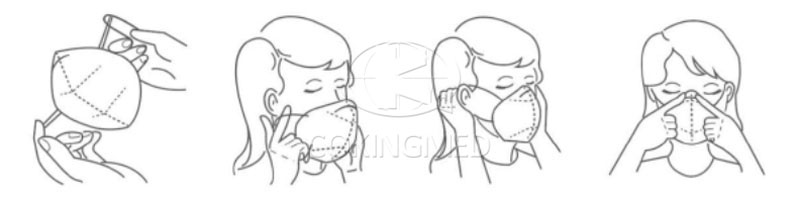

Easy to Use/Donning and fitting

1) Hold the mask in hand with the nose bar up. Allow ear loop to hang freely.

2) Position the mask under the chin covering mouth and nose.

3) Pull the ear loop to the ear and adjust the ear loop to feel as comfortable as possible.

4) Press soft nose bar to conform snugly around the nose. To check fit, cup both hands over the mask and exhale vigorously. If air flows around nose, tighten the nose bar. If air leaks around the edge, reposition the ear loop for better fit. Re-check the seal and repeat the procedure until the mask is sealed properly.

5)Change the mask immediately if breathing becomes difficult or mask becomes damaged or distorted.

6) Change the mask if proper face seal cannot be achieved

7) Carefully observe these instructions is an important step in safe use

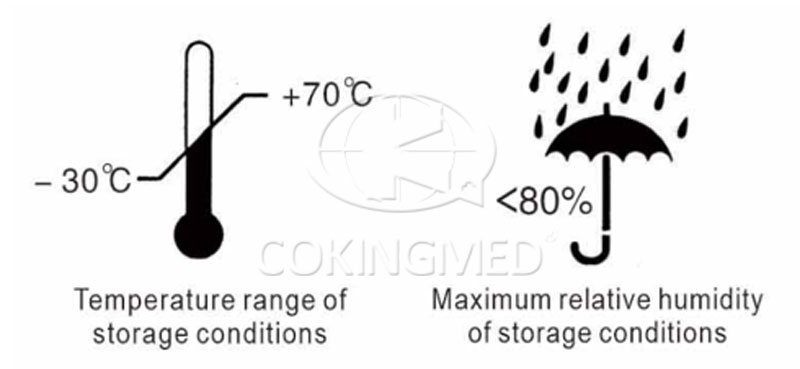

Temperature and humidity range of Storage Condition

Warnings

Failure to follow all instructions and limitations on the use of this product, or failure to achieve proper fit, may result in damage to your health or death or will not provide the expected level of protection

This product does not supply oxygen. Use only in adequately ventilated areas containing sufficient oxygen to support life. Do not use this respirator when the oxygen concentration is less than 19.5%.

Do not use when concentrations of contaminants are immediately dangerous to health or life. Do not use this product in an explosive atmosphere.

Facial hair, beards and certain facial characteristics may reduce the effectiveness of this respirator.

“NR” means non reusable, this particle filtering half mask shall not be used for more than one shift. The length of time this respirator can be used depends on contaminants present but should not exceed one shift. The respirator should be replaced sooner if breathing becomes difficult.

Respirator should be discarded after use or when it becomes damaged or deformed in any way; no longer forms an effective seal to the face; becomes wet or visibly dirty; breathing becomes difficult.

The respirators must be stored and transported in their original package and protected by the storage temperature and humidity as suggested by the manufacturer
